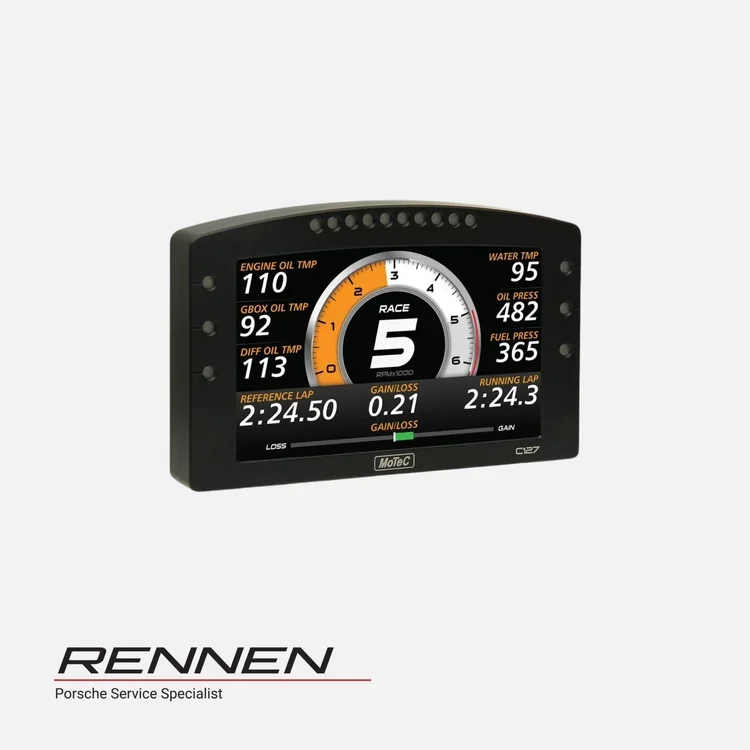

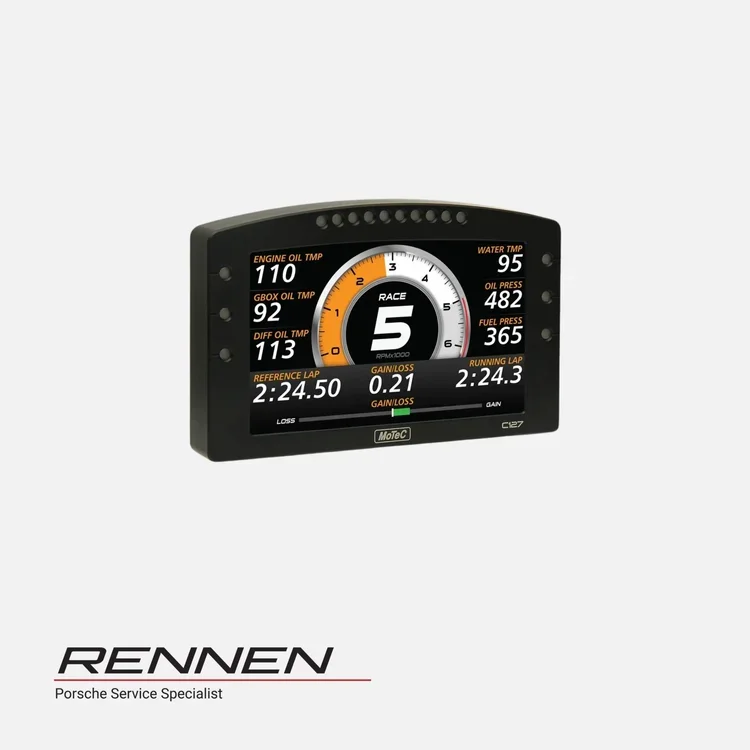

This stylish 7″ full-colour display is ideal for motorsport and performance applications, combining high visibility, data logging, and advanced control in a compact, race-ready unit.
Vivid Display: Ultra-bright, anti-reflective TFT LCD (approx. 176 mm diagonal) with high resolution—designed for easy readability in direct sunlight.
Customise Layouts: Comes with selectable fixed layouts you can configure (channels, labels, colours). For full design flexibility, use the optional Display Creator to design your own graphics, logos, icons, gauges, and multiple pages.
Integrated Data & Control: Built-in full-colour LED array (16 LEDs: 10 top + 3 each side) programmable for alerts, shift lights, or warnings.
Data Logging Options: Base unit performs as a display—but with optional upgrades, logging via USB (expandable up to 32 GB) or internal memory lets you record data at high rates.
Connectivity:
Compatible with CAN-based ECUs and expanders (e.g. E888, E816)
Supports Wideband Lambda sensors, GPS lap timing, live video inputs, and telemetry with further upgrades.
Specifications Snapshot:
Display: 7″ (approx. 176–178 mm), anti-reflective, 800×480 resolution
Physical: ~196×122×25 mm (excl. connector), weight ~615 g, 34-pin waterproof connector
Logging: Optional internal (120 MB) or USB-based (up to 32 GB) logging with fast Ethernet download; logging rates up to 500 samples/sec
I/O (optional upgrades):
Inputs: 6 × analogue voltage, 2 × analogue temperature, 2 × digital, 3 × speed sensor inputs, composite video
Outputs: 4 × low-side outputs (PWM or switched)
Internal Sensors: 3-axis G-sensor, dash temperature sensor, battery voltage monitoring
Comms: 2 × CAN bus, 2 × RS-232 ports (one Rx/Tx, one Rx), optional composite video in (PAL/NTSC)
Rating: Durable housing, suitable for demanding environments, IP67-rated; operates across a wide temperature range.
