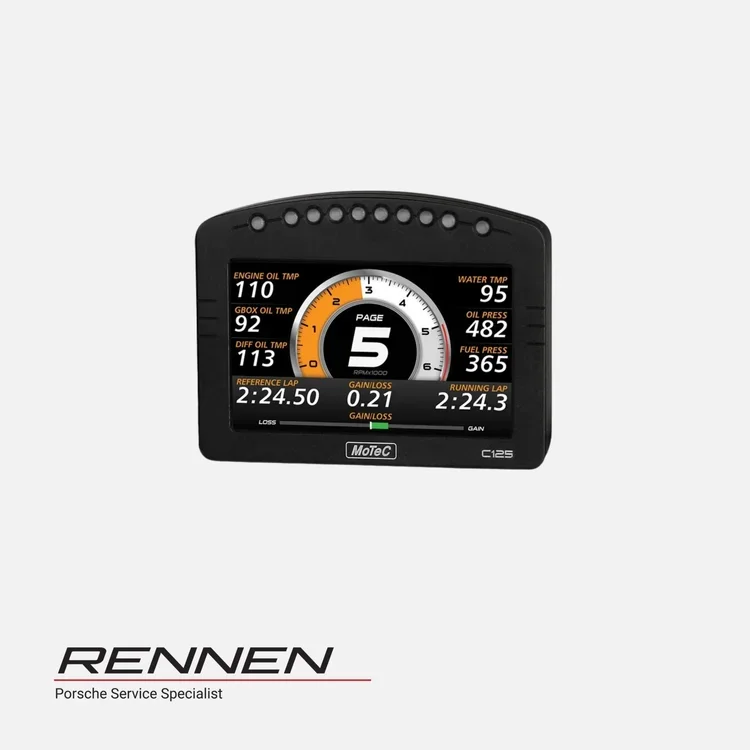

This compact 5-inch full-colour display is perfect for high-performance and motorsport applications, offering vibrant visuals, powerful data logging, and auxiliary control in a rugged package.
Bright, Readable Display: The vivid 125 mm (approx 5″) TFT LCD is ultra-bright and anti-reflective—designed for clear visibility even in direct sunlight.
All-In-One Functionality: Combines display, data logging, auxiliary control, and programmable LEDs to replace multiple separate devices.
Programmable LEDs: Includes 10 full-colour LEDs usable as shift lights or driver alerts, with configurable color, intensity, and behavior.
Flexible Layouts: Offers several preset layouts with configurable channels and labels. The optional Display Creator upgrade allows full screen customization with graphics, logos, gauges, and multiple pages.
Logging Upgrades: Optional internal logging (120 MB) upgrades it to a powerful data logger. USB logging (up to 32 GB) adds further storage flexibility.
IP67 Rated Housing: Durable, fully sealed casing ideal for demanding environments.
Key Specifications Summary:
Display & Layout: 5″ full-colour TFT, anti-reflective, 800×480 resolution, multiple layout pages, 48 programmable message lines, 3 modes/pages.
Inputs & Outputs (optional I/O upgrade): Up to 6 analogue voltage inputs, 2 analogue temperature inputs, 2 digital inputs, 3 speed inputs, 4 low-side outputs (PWM or switched).
Internal Sensors: 3-axis accelerometer (±5 G), dash temperature, and battery voltage monitoring.
Connectivity: 2× configurable CAN buses (one can double as RS232), 2× RS232 ports (1 TX/RX, 1 RX), optional composite video input.
Logging Performance: Optional 120 MB onboard or USB logging up to 32 GB, with logging rates up to 500 samples/sec and fast Ethernet download for data transfer.
Physical Dimensions: Approx. 134.5 × 103.9 × 20.2 mm (excluding connector); weight ~360 g; 34-pin waterproof connector; rear USB port.
Environmental Rating: Operating temperature –20 °C to 70 °C, IP67 ingress protection.
Software & Upgrades:
Dash Manager: Windows tool for configuring display, inputs, outputs, LEDs, calculations, and firmware updates.
Display Creator: Optional upgrade for full graphical layout design and customization beyond default options.
