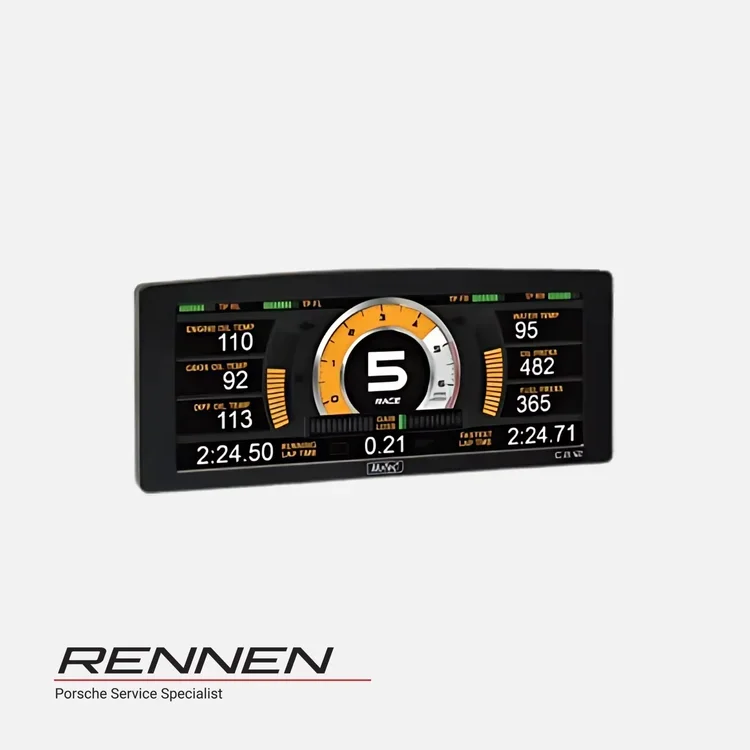

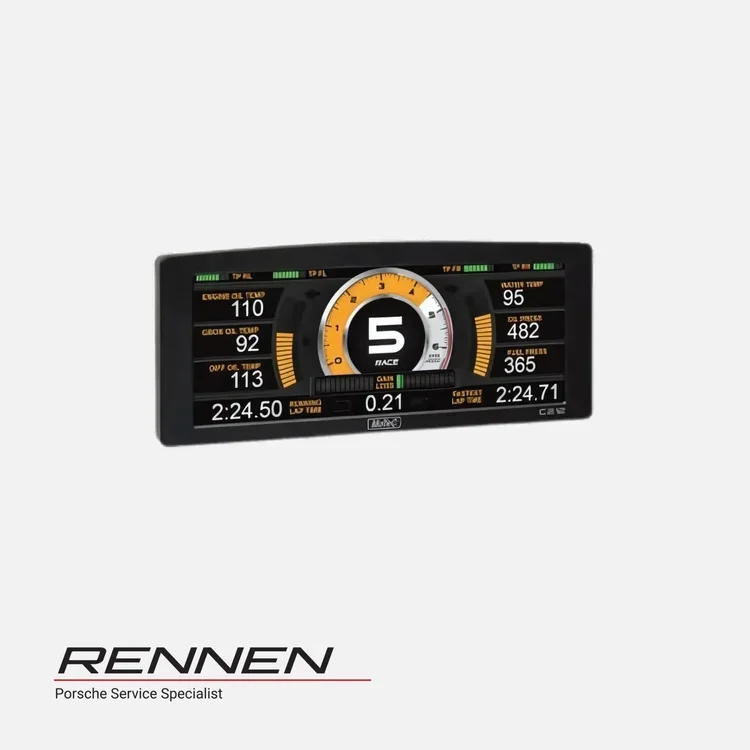

This advanced 12″ full-colour display is engineered for motorsport and high-performance environments. It delivers excellent visibility under direct sunlight and robust all-in-one display functionality.
Equipped with USB logging (upgradeable), the display can archive extensive performance data and is ideal for customized vehicle systems.
Key Features & Capabilities:
Bold 310 mm (12″) high-resolution TFT LCD panel with anti-reflective coating for superb brightness outdoors
Optional internal logging module (120 MB memory) and USB logging for extended data collection
Comes with configurable fixed display layouts—including a reserved live video window—and custom layout creation via Display Creator software
Displays metrics such as ECU channels, warnings, lap data, velocity analytics, fuel calculations, and more
Compatible with CAN devices, ECUs, and expanders like the E888/E816; supports T2 telemetry, GPS lap timing, and camera input
Specifications Snapshot:
Inputs: 2 × digital inputs, 3 × speed inputs, 1 composite video input
Optional I/O Upgrades: Up to 6 analogue voltage, 2 analogue temperature, and additional PWM output capabilities
Internal Sensors: 3-axis accelerometer, dash temperature, and battery voltage monitoring
Communication: Dual CAN buses (configurable), dual RS232 ports, fast Ethernet for setup and downloads
Durability: IP67 rating when properly sealed; supports 6–32 V power input and operates between –20 °C to 70 °C
Physical: Dimensions approx. 340.8 × 144.1 × 34 mm; weight 1690 g; includes 34-pin waterproof connector and rear USB port
Software & Configuration:
Dash Manager: Windows tool for configuring display, logging, channels, and layouts
Display Creator (optional): Full design of graphical layout, icons, and display templates
i2 Software: Standard data analysis (Pro Analysis available as upgrade)
