MoTeC 5-Button Rotary Keypad

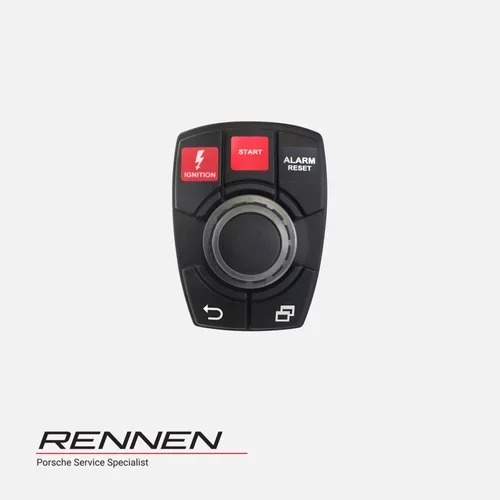

The MoTeC 5-Button Rotary CAN keypad is a fully customized keypad designed specifically for your vehicle. Each button features a custom graphic or symbol, which represents the function it controls. It will enhance the application and integration of MoTeC's PDM into any vehicle. The keypad includes a new CAN based rotary switch. The keypad is backlit with adjustable brightness to work equally as well at night as during the day.

Features:

• Small, lightweight & compact package

• Rugged design for use in extreme environments

• Backlit customize graphical symbols available

• Real time feedback via LED indicators above each button

• Simplify wiring, only four wires required for multiple buttons

• Short circuit, reverse polarity protection

Configuration

The device comes preconfigured for use with MoTeC Colour Display Loggers.

Communications

• Single CAN bus

Capacity on CAN bus

• Up to 2 Rotary Controllers

Advise your dealer if multiple Rotary Controllers are required on the same CAN bus. Use of multiple Controllers will require the units to be pre-configured before supply.

Power

• Operating voltage: 8 to 32 V DC

• Operating current: 0.2 A maximum

• Reverse battery protection

• Short circuit protection

Ambient operating temperature

• -40 °C to 85 °C

Physical

• 1 x 4 pin Deutsch DT connector

• Size (without connector): 110.65 x 79.36 x 51.26 mm

• Weight: 160 g
